CubeSat Project 2 Instructions

Download the final code here.

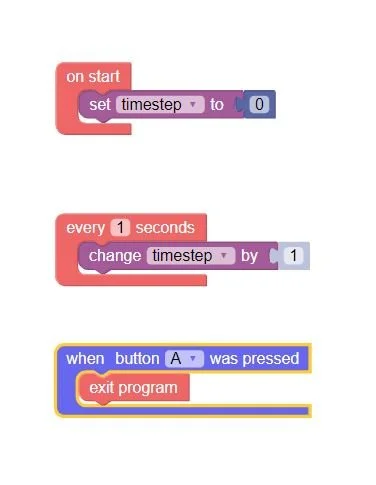

1. Create a new project, that has a timestep variable, and exits when button A is pressed, like for project 1.

3. In the “on start” block, add a set channel block for the HC-12 radio. The radio should be on UART B, and you should set the channel to your team name.

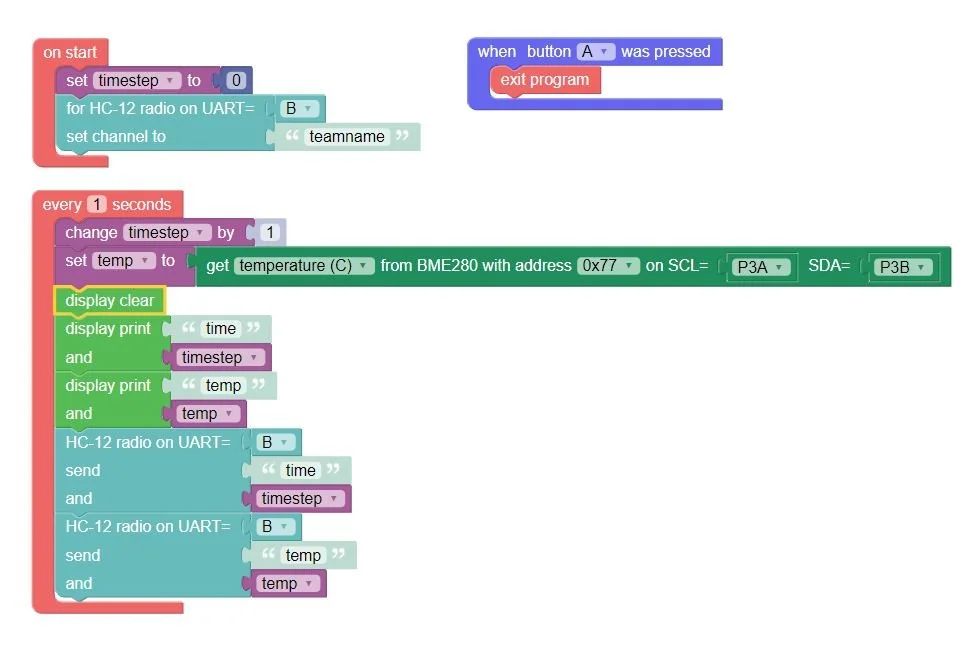

5. Create a new “temp” variable, and use the BME280 sensor to get the temperature. You shouldn’t need to change the other settings.

7. Create a new “altitude” variable, and use the BME280 sensor to get the altitude, like you did with the temperature.

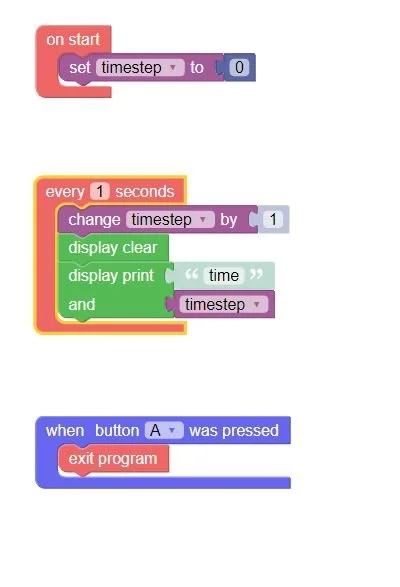

2. After changing the timestep, clear the display, and print “time” and the timestep variable.

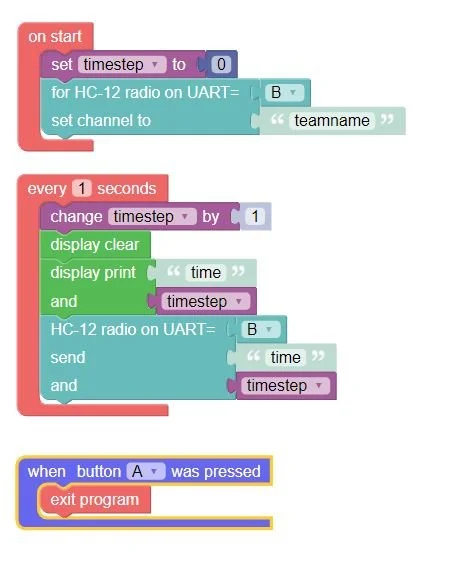

4. After you print the timestep to the display, send “time” and the timestep on the radio. Remember to set the radio to UART B.

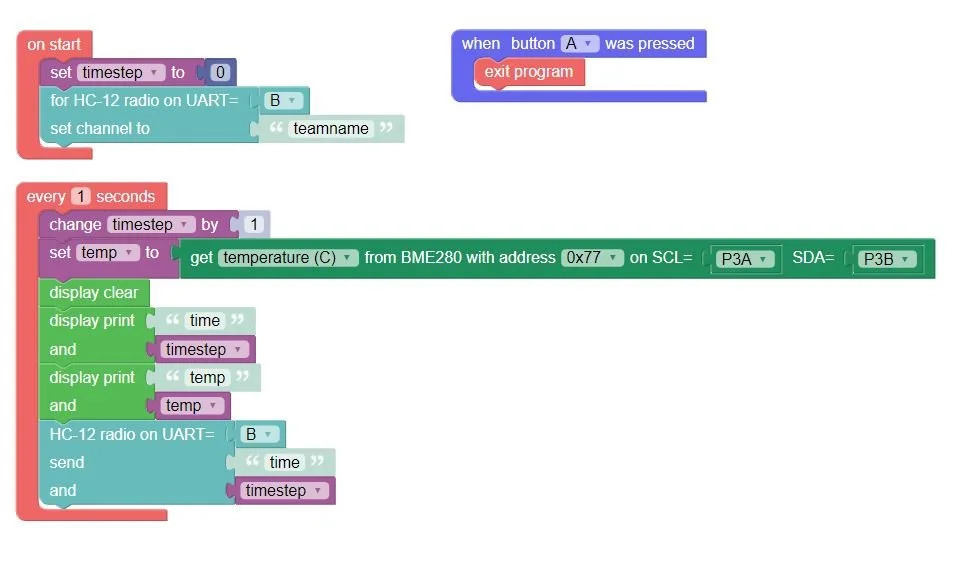

6. Send the temperature over the radio, like you did with the time.

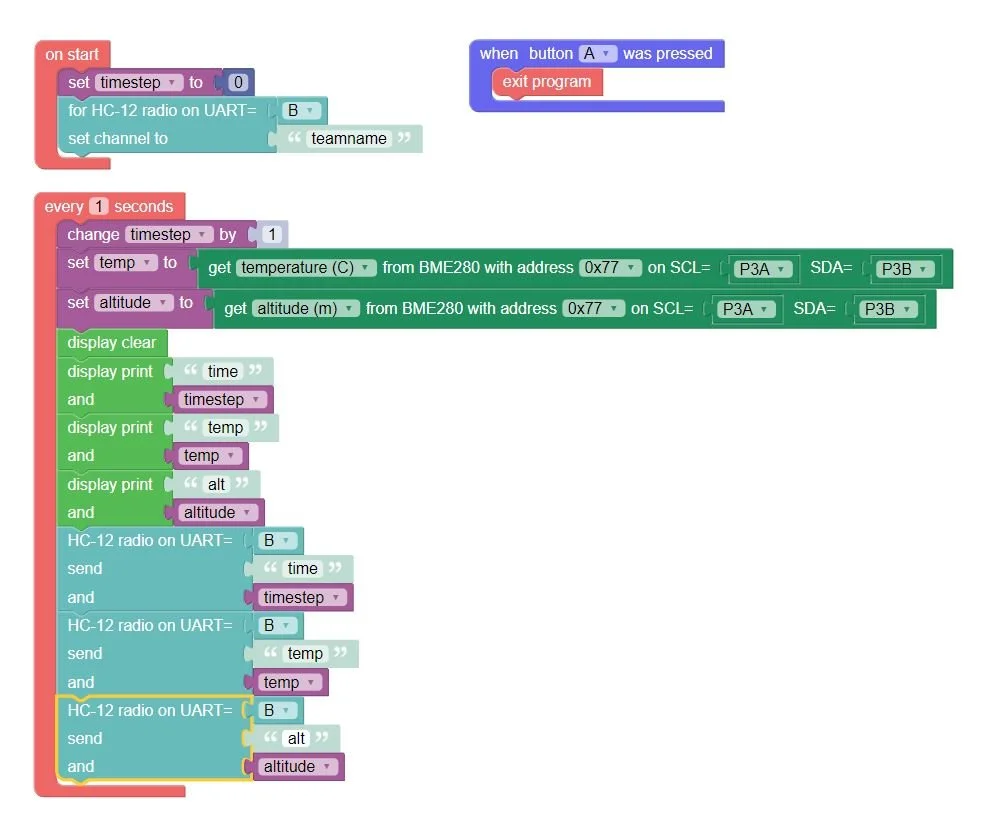

8. Send the altitude over the radio, like the others.

This project is now done! You can test it, and go to the base station to see if it is working.
